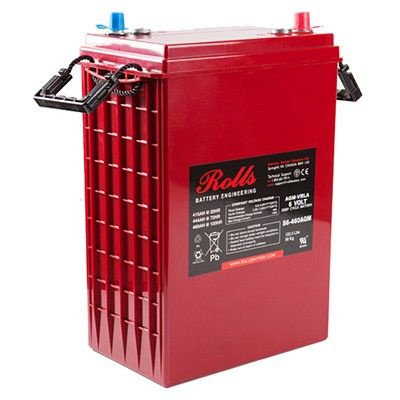

Rolls 6V 460Ah C100 AGM Deep Cycle Battery

Rolls Battery has designed a premium Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. The Rolls AGM batteries are the smart choice for demanding recreational and industrial deep discharge applications. They are designed and built differently than automotive starting batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.

Series AGM-S Warranty See Warranty Terms
Volts 6 BCI L16
Cells 3
Terminal Type DT
Included Hardware Stainless Steel Nuts & Bolts
Size & Thread M10
Charge
Charge Voltage Range 2.45 V/cell @ 25°C (77°F)
Float Voltage Range 2.3 V/cell @ 25°C (77°F)
Recommended Charge Current 85 A
Maximum Charge Current 125 A
Self-Discharge Rate Less than 2% per month at 25°C (77°F)
Internal Resistance 1.6
Capacity
Cold Crank Amps (CCA) 0°F / -18°C 1500
Marine Crank Amps (MCA) 32°F / 0°C 1800
Reserve Capacity (RC @ 25A) 885 Minutes
Reserve Capacity (RC @ 75A) 229 Minutes
Capacity Affect by Temperature 40°C
(104°F)
25°C
(77°F)
0°C
(32°F)
-15°C
(5°F)
102% 100% 85% 65%
Hour Rate Capacity / AMP Hour Current / AMPs
@ 100 Hour Rate 460 AH 4.6 A
@ 20 Hour Rate 415 AH 20.75 A
@ 10 Hour Rate 374 AH 37.4 A
@ 5 Hour Rate 340 AH 68 A
Cut Off Voltage Constant Current Discharge
 VPC 1 hr 2 hr 3 hr 5 hr 8 hr 10 hr
232 123 93.9 68 45 37.4
