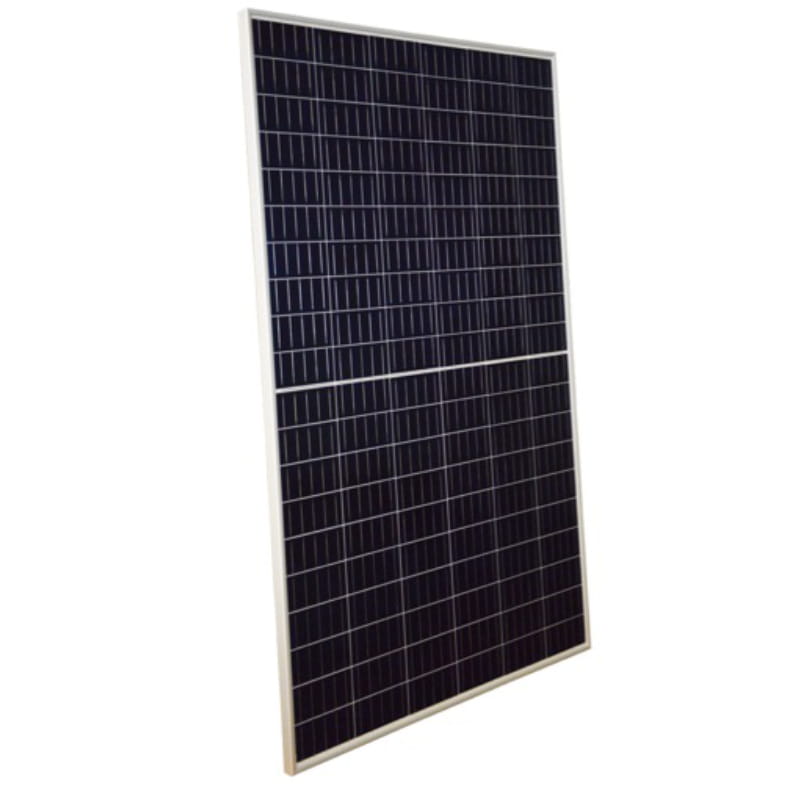

SUNTECH 300 W SOLAR PANEL

FEATURES

  • Maximum Power at STC (Pmax) – 300 W
  • Open Circuit Voltage (Voc) – 39.4 V
  • Optimum Operating Voltage (Vmp) – 32.7 V
  • Short Circuit Current (Isc) – 9.62 A
  • Optimum Operating Current (Imp) – 9.18 A
  • Nominal Voltage – 24V
  • Solar Cell – Polycrystalline silicon 6 inches
  • No. of Cells – 120 (6 × 20)
Category: Tag:

Trust Suntech Power 300W Mono Solar Panel HyPro STP300S-20/WFW (5BB) to Deliver Reliable Performance Over Time.

  • World-class manufacturer of crystalline silicon photovoltaic modules
  • Unrivaled manufacturing capacity and world-class technology
  • Rigorous quality control meeting the highest international standards: ISO 9001: 2008, ISO 14001: 2004 and ISO17025: 2005
  • Regular independently checked production process from international accredited institute/company
  • Tested for harsh environments (salt mist, ammonia corrosion and sand blowing testing: IEC 61701, 2PfG 1917/05.11, DIN EN 60068-2-68)

INDUSTRY-LEADING WARRANTY BASED ON NOMINAL POWER

  • 97.5% in the first year, thereafter, for years two (2) through twenty-five (25), 0.7% maximum decrease from MODULE’s nominal power output per year, ending with the 80.7% in the 25th year after the defined WARRANTY STARTING DATE.****
  • 12-year material and workmanship warranty

COMPACT AND DURABLE FRAME DESIGN

The new compact frame means more modules per package, so it saves your shipping and inventory cost. The rigid and durable hollow chamber guarantees the same long-term and reliable performance.

IP67 RATED JUNCTION BOX

The Suntech IP68 rated junction box ensures an outstanding waterproof level, supports installations in all orientations and reduces stress on the cables. High reliable performance, low resistance connectors ensure maximum output for the highest energy production.

You have questions about performance and quality. Listen to British Gas expert:

Weight 18.3 kg
Dimensions 99.2 × 3.5 × 165 cm
Brand Suntech Power
Rated Power (W/kW) 300 W
Product Category Panels and Modules, Monocrystalline, SOLAR PHOTOVOLTAIC (PV)

Suntech Power 300W Mono Solar Panel HyPro STP300S-20/WFW (5BB)

  • Supplier Part No: STP300S-20/WFW
  • Weight: 18.3 kg
  • Rated Power: 300 W
  • Length:1,650 mm
  • Width:992 mm
  • Depth:3.5 mm
  • Vmpp: 32.6 V
  • Impp: 9.21 A
  • Voc: 39.9 V
  • Temp. Coefficient (Mpp):-0.41 %
  • Clamp position on panel:  Long and short side
  • Connector Type: MC4 MATEABLE
  • Efficiency: 18.3 %
  • Pallet Size: Oversized
